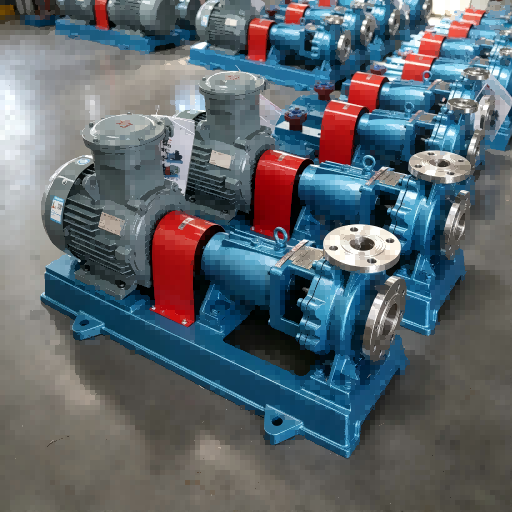

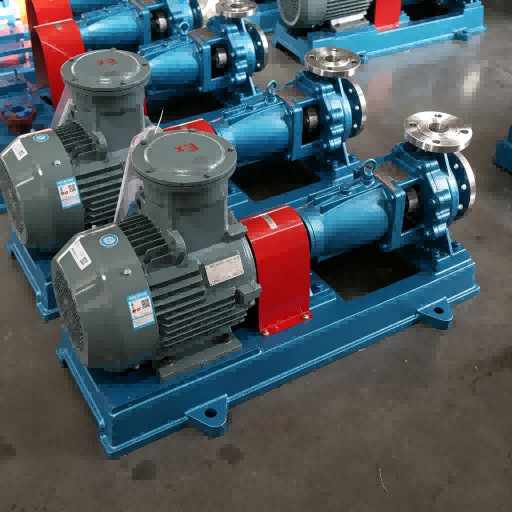

IH65-50-160 stainless steel centrifugal pump

IH chemical centrifugal pumps are designed and manufactured inaccordance with international standards and relevant national standards.Its performance, rated performance points, and size are equivalent to thenational standard ISO2858. National standard number: CB/T5662 Axialsuction centrifugal pump (16 bar) Marking, performance and dimensionsGB/T5566 Technical requirements for centrifugal pumps (II)

This series of pumps adopts various sealing methods according todifferent medium working conditions: external corrugated pipe mechani-cal seal, single end face internal mechanical seal, double end face internalmechanical seal, containerized double end face mechanical seal, andinternal high-temperature and high-pressure corrugated pipe mechani-cal seal. Mechanical seal materials are selected according to different media.

(1) Pressure resistance limit The pressure resistance limit is 1.6 MPa, and it should be noted that the output pressure of the pump cannot exceed the pressure resistance limit.(

2) Temperature range: 0-100°C: Environmental temperature range: 0~40 C: Environmental humidity range: 35-85% RH.

(3) If the operating temperature is within the range of 100°C to 150°C, the sealing form needs to be adjusted.

(4)It can transport media with smallamounts of particles and crystals (solid content  10%), and it is forbidden to transport mediathat will generate a large number of bubbles.

(5） The influence of liquid viscosity on pump performance: When the viscosity of the liquid changes, the performance of the pump also changes. The difference in pump selection can be consulted with the company's technical department.

The IH65-50-160 stainless steel centrifugal pump is a horizontal standard chemical pump. Its stainless steel flow components offer outstanding anti-corrosion performance for corrosive particle-free liquids. Featuring high efficiency, stable running and easy maintenance, it is commonly used in chemical, pharmaceutical, environmental protection and food industries. Explosion-proof motor configuration is available for hazardous working scenarios.
